Z-MaT · Hunter STH / Flash FL / Star STL

CNC Lathes for India

Three Z-MaT turning center series for every shop — Hunter STH economy toolpost lathes, the Flash FL280 collet-only bar lathe, and the Star STL5 turret lathe with an 8 or 12-station bi-directional turret. Supplied, installed, and serviced across India by Built Forge India.

View All Models WhatsApp Enquiry
300–500 mm
Swing over bed range
Up to 600 mm
Max turning length
Up to 5,000 RPM
Spindle speed range
4 to 12 Stations
Toolpost to turret options
Z-MaT — 3 Series, 4 Models Available

Hunter STH — Economy Series

Entry-level toolpost lathes built on a hardened 30° slant box-way bed. STH6130 covers compact shafts and fittings; STH6150 steps up to larger-diameter chucked work up to 500 mm swing.

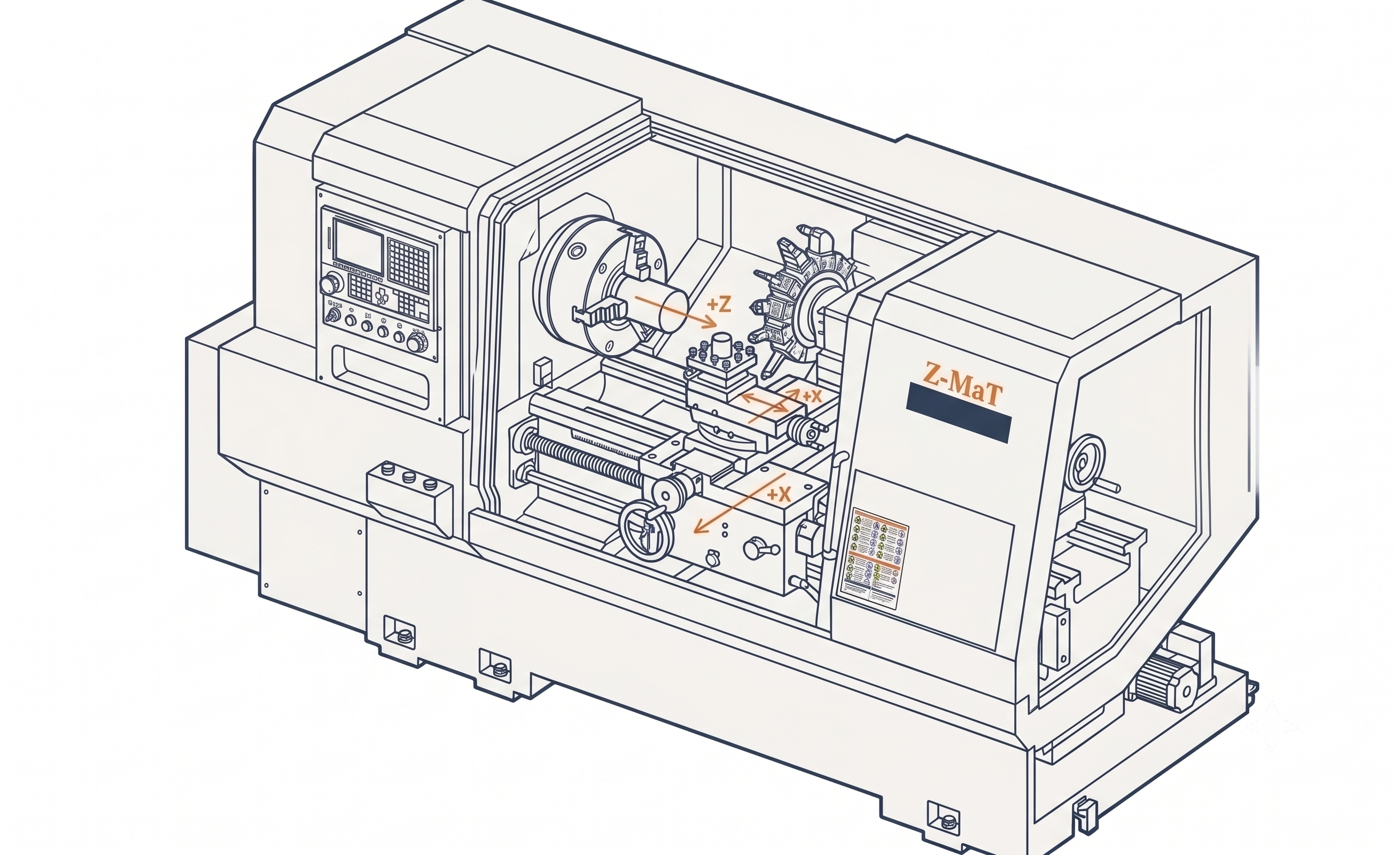

Z-MaT Hunter STH6130 CNC Lathe — 300mm swing
STH
STH6130
CNC Toolpost Lathe

Z-MaT Hunter STH6130

300 mm swing · Compact shafts, fittings & small chucked parts

Chuck6"
Max Swing Over Bed300 mm
Max Swing Over Slide130 mm
Max Turning Length280 mm (350 mm collet)
Spindle Bore48 mm (opt. 55 mm)
Spindle Speed2,500 / 3,000 / 4,500 / 5,000 RPM
Spindle Motor (S2-30min / S1)5.5 / 3.7 kW (opt. 7.5 / 5.5 kW)
Continuous S1 Rating3.7 kW
Turret / Toolpost4-station toolpost (opt. 8-station turret)
X Travel300 mm
Z Travel280 mm
Rapid TraverseConfirm with Built Forge India
Bed / Guideway30° slant, hardened box way
Swing
300 mm
Turning Length
280 mm
Speed
Up to 5,000 RPM
Motor
5.5 / 3.7 kW
Turret
4-stn (opt. 8-stn)
Bed
30° slant box-way
Z-MaT Hunter STH6150 CNC Lathe — 500mm swing
STH
STH6150
CNC Toolpost Lathe

Z-MaT Hunter STH6150

500 mm swing · Larger-diameter chucked work, heavier cuts

Chuck12" / 15"
Max Swing Over Bed500 mm
Max Swing Over SlideConfirm with Built Forge India
Max Turning Length600 mm
Spindle Bore83 / 105 mm
Spindle Speed1,000–2,500 RPM
Spindle Motor (S2-30min / S1)15 / 11 kW (opt. 18.5 / 15 kW)
Continuous S1 Rating11 kW
Turret / Toolpost4-station toolpost (opt. 8-station turret)
X Travel300 mm
Z Travel750 mm
Rapid Traverse9–12 m/min
Bed / Guideway30° slant, hardened box way
Swing
500 mm
Turning Length
600 mm
Speed
1,000–2,500 RPM
Motor
15 / 11 kW
Turret
4-stn (opt. 8-stn)
Bed
30° slant box-way

Flash FL — Collet Turning Center

A compact, one-piece cast-bed collet lathe for high-volume bar and small-part turning. No chuck — collet-only clamping means faster changeovers and tighter repeatability on smaller-diameter work.

Z-MaT Flash FL280 CNC Lathe — collet-only turning center
FL
FL280
CNC Collet Lathe

Z-MaT Flash FL280

Collet only · Fast bar-fed turning, no chucking step

ChuckCollet only
Max Swing Over Bed300 mm
Max Swing Over SlideConfirm with Built Forge India
Max Turning Length250 mm collet / 165 mm chuck
Spindle Bore48 mm
Spindle Speed3,000 / 4,500 RPM
Spindle Motor (S2-30min / S1)5.5 / 3.7 kW
Continuous S1 Rating3.7 kW
Turret / Toolpost4–6 station
X Travel280 mm
Z Travel250 mm
Rapid Traverse15–25 m/min
Bed / GuidewayOne-piece casting, linear guideway
Chuck
Collet only
Turning Length
250 mm collet
Speed
3,000 / 4,500 RPM
Motor
5.5 / 3.7 kW
Toolpost
4–6 station
Bed
One-piece casting

Why shops pick the FL280

  • Best for high-volume, bar-fed small parts — bushings, pins, small fittings
  • No chuck to swap or true up — collet clamping keeps changeovers fast
  • One-piece cast bed reduces vibration for a smoother, more repeatable finish
  • 15–25 m/min rapid traverse keeps non-cutting time low on short-cycle parts

Star STL — Turret Lathe

A slant-bed turret lathe on precision linear guideways. An 8 or 12-station bi-directional turret handles complex, multi-operation parts in a single setup.

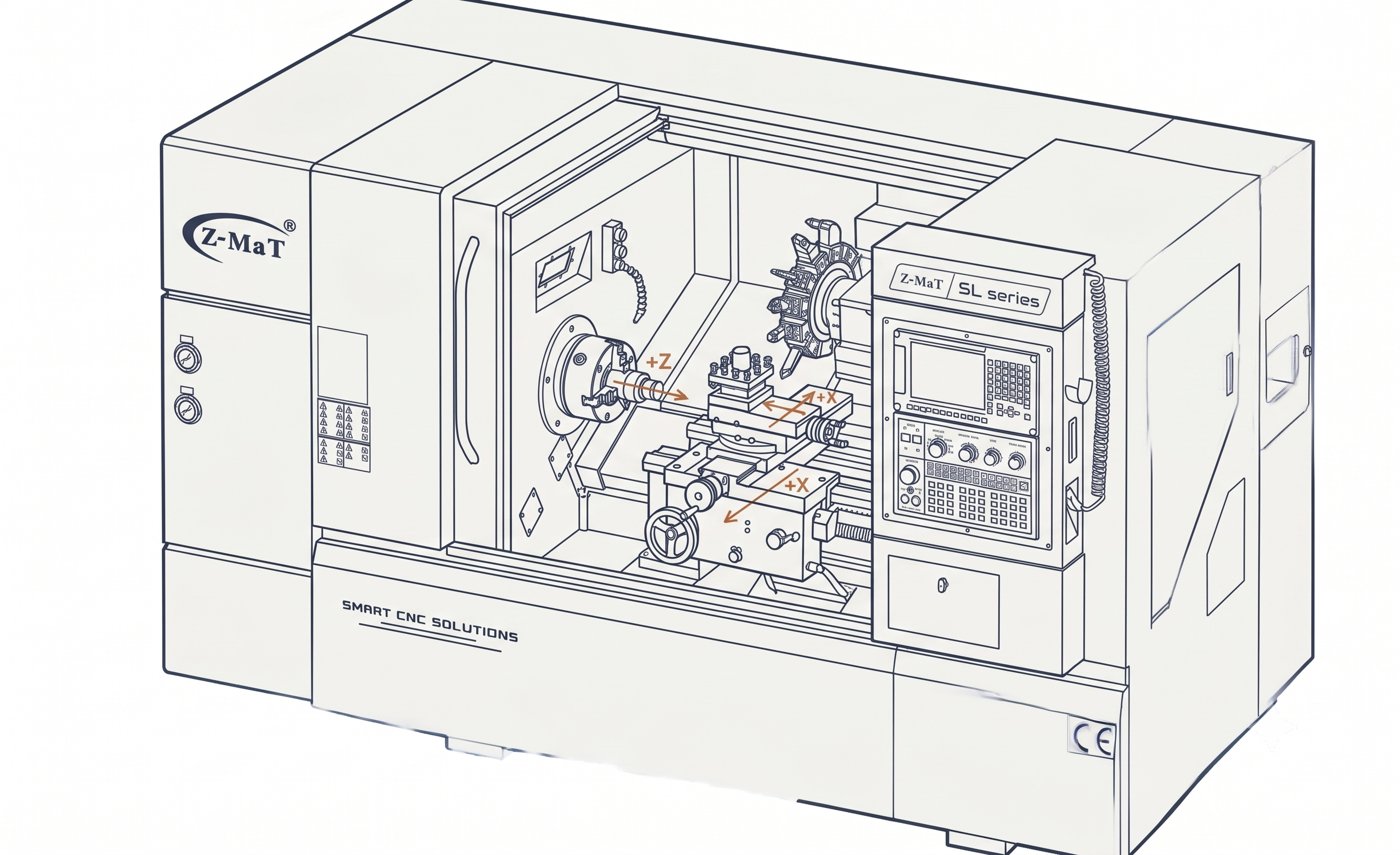

Z-MaT Star STL5 CNC Turret Lathe
STL
STL5
CNC Turret Lathe

Z-MaT Star STL5

8 or 12-station bi-directional turret · Complex multi-op parts

Chuck5" / 6"
Max Swing Over Bed300 mm
Max Swing Over Slide180 mm
Max Turning Length300–550 mm
Spindle BoreConfirm with Built Forge India
Spindle Speed4,500 RPM
Spindle Motor (S2-30min / S1)7.5 / 5.5 kW (opt. 11 / 7.5 kW)
Continuous S1 Rating5.5 kW
Turret / Toolpost8 or 12-station bi-directional turret
X Travel150 mm
Z Travel300–550 mm
Rapid Traverse20 m/min
Bed / GuidewaySlant bed, precision linear guideway
Chuck
5" / 6"
Turning Length
300–550 mm
Speed
4,500 RPM
Motor
7.5 / 5.5 kW
Turret
8 or 12-stn bi-dir.
Bed
Slant, linear guideway

Why shops pick the STL5

  • 8 or 12-station bi-directional turret cuts tool-change time on complex parts
  • Precision linear guideways hold accuracy over long production runs
  • 300–550 mm turning length covers most shaft and stepped-part work
  • Chuck-based (5"/6") — suited to heavier, larger-diameter stock than the FL280
Side-by-Side

Model Comparison

Specification STH6130 STH6150 FL280 STL5
Chuck6"12" / 15"Collet only5" / 6"
Max Swing Over Bed300 mm500 mm300 mm300 mm
Max Swing Over Slide130 mmConfirm with Built Forge IndiaConfirm with Built Forge India180 mm
Max Turning Length280 mm (350 collet)600 mm250 collet / 165 chuck300–550 mm
Spindle Bore48 mm (opt. 55)83 / 105 mm48 mmConfirm with Built Forge India
Spindle Speed2,500–5,000 RPM1,000–2,500 RPM3,000 / 4,500 RPM4,500 RPM
Spindle Motor (S2/S1)5.5 / 3.7 kW15 / 11 kW5.5 / 3.7 kW7.5 / 5.5 kW
Continuous S1 Rating3.7 kW11 kW3.7 kW5.5 kW
Turret / Toolpost4-stn (opt. 8-stn)4-stn (opt. 8-stn)4–6 stn8 or 12-stn bi-dir.
X Travel300 mm300 mm280 mm150 mm
Z Travel280 mm750 mm250 mm300–550 mm
Rapid TraverseConfirm with Built Forge India9–12 m/min15–25 m/min20 m/min
Bed / Guideway30° slant box-way30° slant box-wayOne-piece castingSlant, linear guideway

* Specifications subject to change. Fields marked "Confirm with Built Forge India" are pending final factory confirmation — contact us before finalizing a purchase order.

Applications

Who Uses These CNC Lathes

Automotive Shafts & Fittings

Drive shafts, axle stub shafts, and pipe fittings. The STH6150's 500 mm swing and 11 kW continuous rating handle heavier automotive turning work.

Hydraulic & Pneumatic Components

Cylinder rods, valve bodies, and fitting adapters. The STL5's turret and precision linear guideways hold tolerance across multi-operation cycles.

Fasteners & Precision Turned Parts

Bolts, studs, and bushings run in high volume on bar stock. The FL280's collet-only design keeps changeover time low for short-cycle runs.

Flanges & Pipe Components

Process and hydraulic flanges machined from bar or forged blanks — the STH series' chuck capacity up to 15" covers most industrial flange sizes.

General Engineering & Job Shop

From one-off shafts to small production batches — the STH6130 gives job shops production-grade turning without enterprise-scale floor space.

Agricultural & Industrial Equipment

Pump shafts, spindle sleeves, and couplings machined to length on the STH6150's 750 mm Z-travel for longer-form components.

Not sure which Z-MaT lathe fits your part?

Send us your part drawing or material, and we'll tell you exactly which series — and what cycle time to expect.

Chat on WhatsApp View VMC Range
FAQ

Common Questions

A CNC lathe (turning center) rotates the workpiece against a stationary cutting tool to produce round, cylindrical parts — shafts, fittings, flanges, bushings. A Vertical Machining Center (VMC) does the opposite: the workpiece stays still while a rotating spindle mills it. Lathes are the right choice whenever the part is fundamentally round; VMCs are for flat, prismatic, or milled features.
Hunter STH (STH6130, STH6150) is our economy toolpost range — pick STH6130 for smaller shafts and fittings, STH6150 for larger chucked work up to 500 mm swing. Flash FL280 is a compact collet-only lathe built for fast, repeatable bar-fed work with no chucking step. Star STL5 is a slant-bed turret lathe with an 8 or 12-station bi-directional turret, suited to complex multi-operation parts in a single setup. Send us your part drawing and we'll confirm the right model.
The FL280 is a collet-only machine — it has no chuck at all. Collet work clamps the bar stock directly via a collet rather than chuck jaws, which is faster to change over and better suited to smaller-diameter, high-volume bar and small-part turning. If your work requires chuck clamping, the Hunter STH or Star STL series are the right fit.
Turning length ranges from 250–350 mm on the FL280 up to 600 mm on the STH6150, and 300–550 mm on the STL5. Toolpost/turret capacity ranges from a standard 4-station toolpost (STH series, with an 8-station turret option) up to an 8 or 12-station bi-directional turret on the STL5 for complex multi-operation parts.
Yes. We handle machine supply, installation, commissioning, operator training, and ongoing after-sales service for the full Z-MaT lathe range across India. WhatsApp us at +91-90190-75430 to discuss delivery timelines to your location.
Z-MaT lathes are used for automotive shafts and stub axles, hydraulic and pneumatic cylinder rods and fittings, pipe flanges, fasteners and precision turned bushings, and general job-shop bar-fed production — any part that starts as round stock.
